Intel Pentium J2900 And Celeron Industrial PC With Dual LAN Dual COM DDR3L 8GB RAM
Intel Pentium And Celeron Industrial PC Description:
This product powered by a selection of Intel Celeron and Pentium processors including J1800, J1900 and J2900. This compact yet highly capable device is designed to meet the demanding needs of industrial applications. It is also equipped with Intel Atom Z3700 series Intel HD Graphics, which brings you excellent graphic processing power.
Intel Pentium And Celeron Industrial PC Details:
Intel Pentoum And Celeron Industrial PC Details | CPU | Intel Celeron J1800: 2 cores 2 threads Processor, 2.58 GHz Burst Frequency, 1 MB L2 Cache, 10 W TDP; Intel Celeron J1900: 4 cores 4 threads Processor, 2.42 GHz Burst Frequency, 2 MB L2 Cache, 10 W TDP; Intel Pentium J2900: 4 cores 4 threads Processor, 2.66 GHz Burst Frequency, 2 MB L2 Cache, 10 W TDP |
| GPU | Intel® HD Graphics for Intel Atom® Processor Z3700 Series |
| Memory | Single-channel SODIMM slot supporting DDR3L 1066/1333/1600MHz, up to 8GB |
| Hard Disk | 1*full height mSATA SSD, 1*2.5'' SATA SSD/ HDD |
| Display | 1*VGA (2650×1600@60Hz), 1*HDMI (1920×1200@60Hz), supports dual screen synchronous/ asynchronous display |
| Ethernet | 2*LAN 10/100/1000/ Mbps Realtek 8111F LAN, support wake-up on LAN |
| Audio | Realtek ALC662 audio control chip, supports dual-channel, stereo, Line out |
| Expansion Slot | 1* half-height Mini PCIE Slot |
| Operating System | Windows 7, Windows 8, Windows 10, Ubuntu, Linux, CentOS, etc. |
| Power | 1*DC 12V 3A/36W (AC TO DC,100~240V) |
| Material | Aluminium Alloy |
| Installation Method | VESA/ Wall Mount/ Desktop Mount |
| Size/Weight | 136mm * 126mm * 37mm/ About 0.65KG |
| Colour | Black |
| Working Temperature | -20℃ ~ +65℃ |
| Storage Temperature | -20℃ ~ +75℃ |
| Operating Humidity | 5% ~ 95% relative humidity (No Condensation) |
Intel Pentium And Celeron Industrial PC Processor:
This industrial PC supports a choice of Intel Celeron J1800 processor options with 2 cores and 2 threads. With a burst frequency of up to 2.58 GHz and a 1 MB L2 cache, it is capable of processing data quickly. At the same time, the thermal design power consumption (TDP) of only 10W ensures low-power operation, making it ideal for industrial environments with stringent power consumption requirements.
For users with higher performance requirements, there is also the Intel Celeron J1900 processor available. It features 4 cores and 4 threads with a burst frequency of 2.42 GHz and 2 MB of L2 cache to further enhance data processing.
In addition, the Intel Pentium J2900 processor is also one of the highlights of this mini industrial PC. The Intel Pentium J2900 processor is also one of the highlights of this mini industrial PC. It is also a 4-core, 4-thread design with a burst frequency of 2.66 GHz to provide powerful support for complex tasks.
Intel Pentium And Celeron Industrial PC Stable Operation:
It supports power-up and network wake-up functions, which brings great convenience to your work. The power-up function allows the device to start up automatically when it is connected to the power supply without manual intervention, which greatly improves work efficiency. The Wake-on-LAN function allows you to remotely wake up a dormant device over the network, enabling control and management anytime, anywhere.
Intel Pentium And Celeron Industrial PC Cooling System:
Fanless design is another major advantage of this industrial computer. It not only reduces noise pollution, but also improves the stability and reliability of the device. The absence of a fan means less wear and tear on mechanical components and risk of failure, as well as less likelihood of dust entering the interior of the unit, thus extending its lifespan.
Intel Pentium And Celeron Industrial PC Strong Environment Adaptability:
This dual network dual serial port industrial computer is able to adapt to a variety of harsh environments with its excellent dust, corrosion, vibration and shock resistance, as well as high and low temperature tolerance. Whether in petrochemical, mining, transport or other industrial applications in harsh environments, it can provide you with stable and efficient computing and control support.
Intel Pentium And Celeron Industrial PC Interface View:

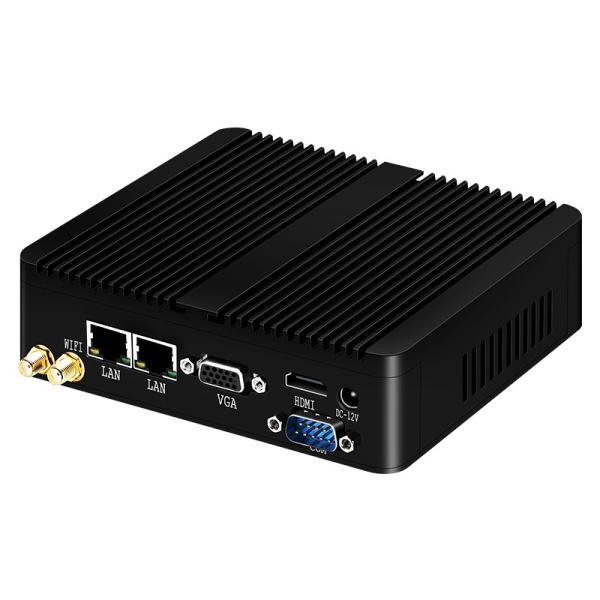

Rich interface design, with 1*USB3.0, 2*RS232 COM ports, 2*Gigabit Ethernet ports, 1*VGA, 1*HDMI and other interfaces, can be adapted to more industrial equipment.
